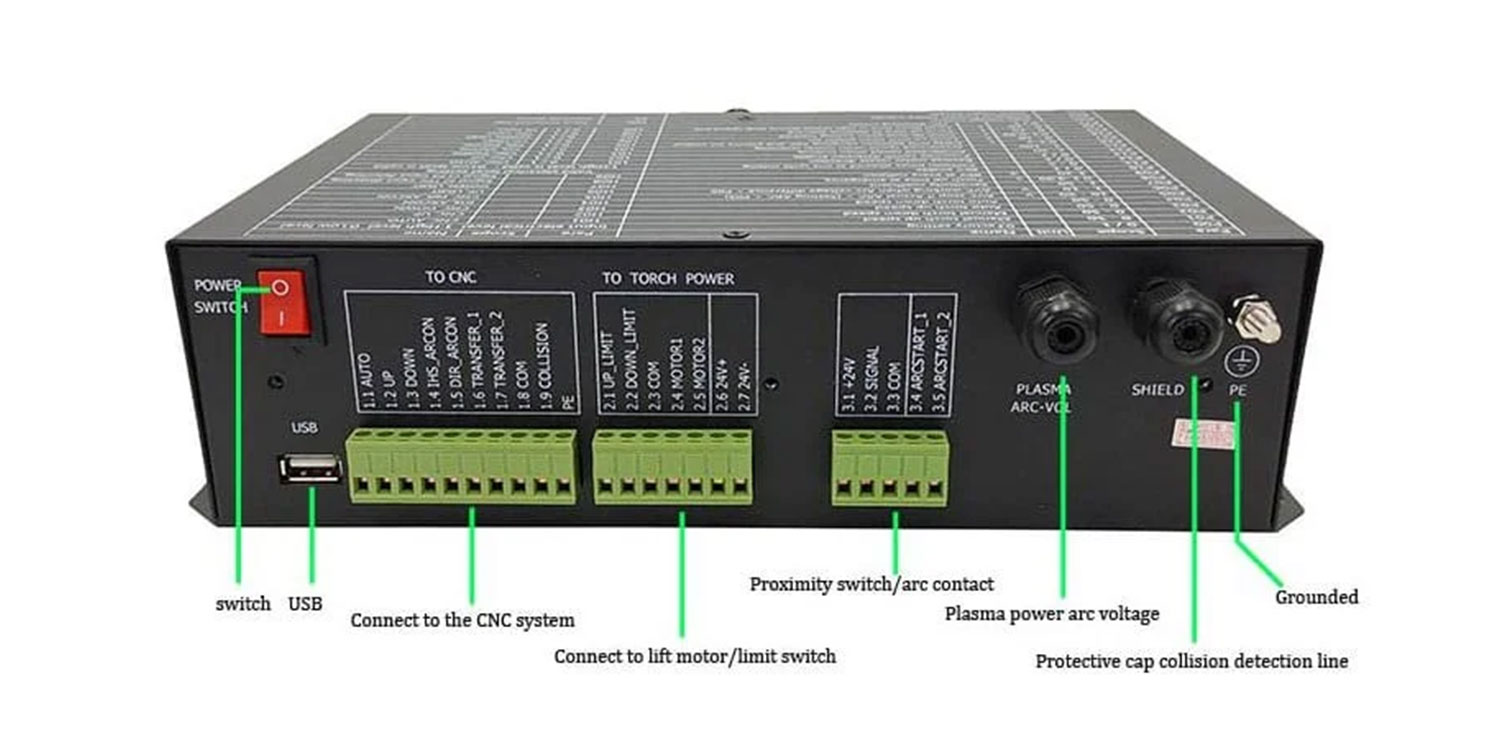

Torch Height Controller (THC)

Torch Height Controller (THC) is an advanced automation device used in CNC plasma and flame cutting systems to maintain a constant distance between the cutting torch and the workpiece. It automatically adjusts torch height in real-time to ensure stable arc performance, improved cut quality, and reduced consumable wear.

Widely used in CNC plasma cutting machines, THC systems enhance cutting accuracy by compensating for uneven or warped metal surfaces during operation. This results in smoother cuts, reduced dross formation, and improved overall productivity in industrial cutting environments.

Technical Specifications

Product Type	Torch Height Control System
Control Method	Arc Voltage Sensing / Automatic Height Adjustment
Input Voltage	24V DC / 110–220V AC (model dependent)
Compatibility	CNC Plasma Cutting Machines
Signal Type	Analog / Digital / Arc Voltage Feedback
Adjustment Range	0 – 200 mm (depending on system setup)
Response Time	Fast Real-Time Adjustment
Display	Digital Display / Touch Panel (model dependent)
Mounting Type	Control Cabinet / CNC System Integration
Application	Automatic Torch Height Control for CNC Cutting
Usage Industries	Metal Fabrication, Automotive, Shipbuilding, Construction, Engineering, Manufacturing

Available Types

• Arc Voltage Based Torch Height Controller

• Digital CNC THC System

• Automatic Height Control Module

• Integrated CNC Plasma THC System

• Advanced Servo-Based THC Systems

Key Features

• Maintains consistent torch height for optimal cutting quality

• Improves cut accuracy and reduces material wastage

• Automatic real-time height adjustment during cutting

• Compatible with most CNC plasma cutting systems

• Reduces consumable wear and increases torch life

• Enhances productivity in automated cutting operations

Applications

• CNC plasma cutting machines and gantry systems

• Industrial metal fabrication and sheet cutting

• Automotive manufacturing and structural fabrication

• Shipbuilding and heavy engineering industries

• Automated CNC production lines and cutting systems
