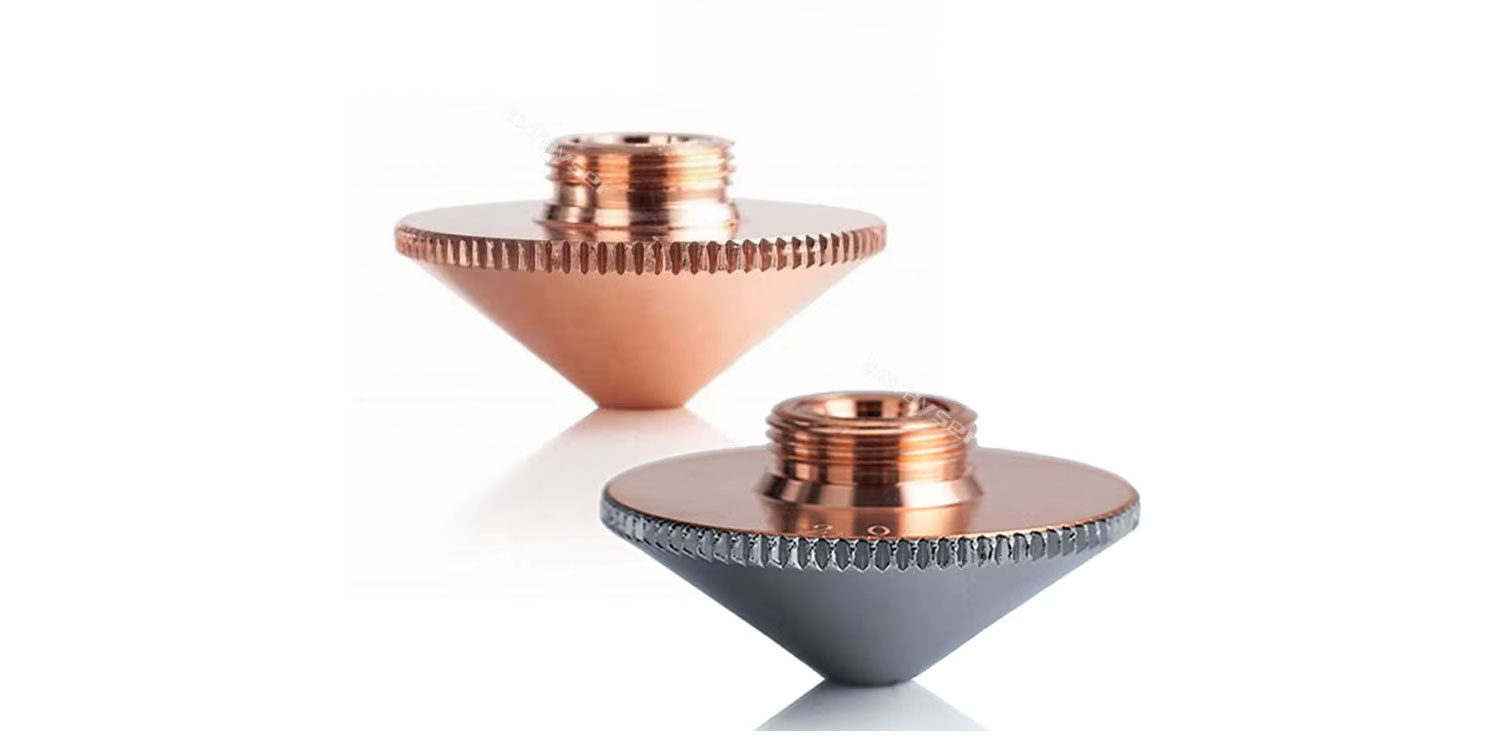

Raytool Laser Cutting Nozzle – Double Layer

Raytool Double Layer Laser Cutting Nozzle is a precision-engineered consumable designed for high-performance fiber laser cutting systems. Manufactured for stable gas flow control and enhanced cutting accuracy, these nozzles ensure clean cutting edges, reduced dross formation, and improved overall cutting efficiency in industrial applications.

Specifically designed for Raytool laser cutting heads, the double-layer structure improves thermal stability and helps maintain consistent performance during high-power and continuous cutting operations. These nozzles are widely used in metal fabrication, automotive manufacturing, aerospace components, and precision engineering industries.

Technical Specifications

Product Type	Laser Cutting Consumable
Brand	Raytool
Type	Double Layer Laser Cutting Nozzle
Compatible System	Fiber Laser Cutting Machines
Compatible Cutting Head	Raytool Laser Cutting Head Series
Material	High-Grade Copper Alloy
Orifice Sizes	0.8 mm – 5.0 mm (depending on application)
Gas Type	Oxygen / Nitrogen / Compressed Air
Cooling Method	Assisted Gas Cooling
Cutting Thickness Range	0.5 mm – 25 mm (depending on laser power)
Mounting Type	Threaded Precision Fit
Usage Industries	Metal Fabrication, Automotive, Aerospace, Engineering, Manufacturing

Available Variants

• Single Layer Laser Nozzle

• Double Layer Laser Nozzle (Standard)

• High-Power Cutting Nozzle

• Fine Precision Cutting Nozzle

• Extended Life Industrial Nozzle Series

Key Features

• Double-layer design for improved thermal stability and durability

• Ensures precise gas flow for high-quality laser cutting results

• Reduces dross formation and improves edge finish

• Compatible with Raytool fiber laser cutting heads

• High-quality copper construction for long service life

• Suitable for high-power and continuous industrial cutting applications

Applications

• Industrial fiber laser cutting systems

• Sheet metal fabrication and processing

• Automotive component manufacturing

• Aerospace and precision engineering applications

• Heavy industrial manufacturing and CNC cutting operations
