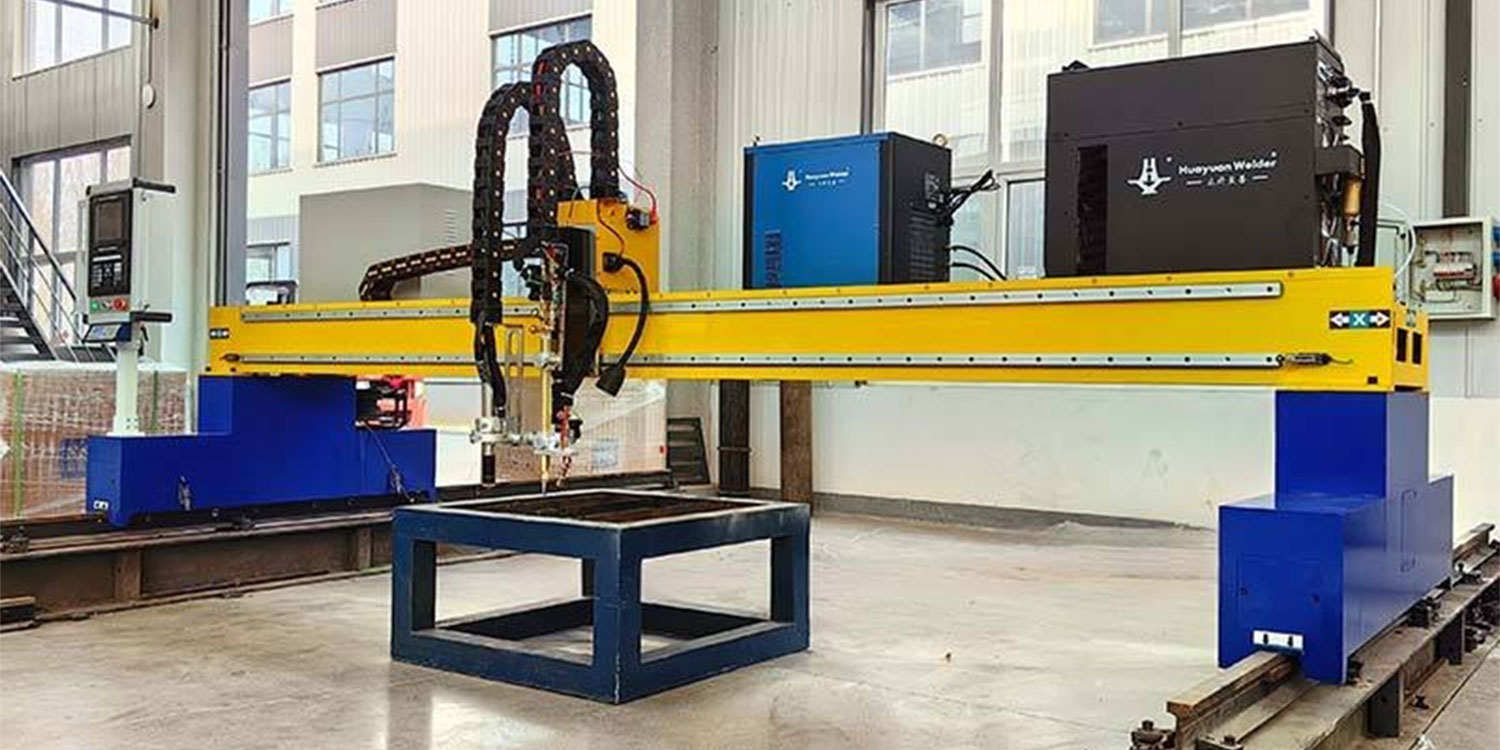

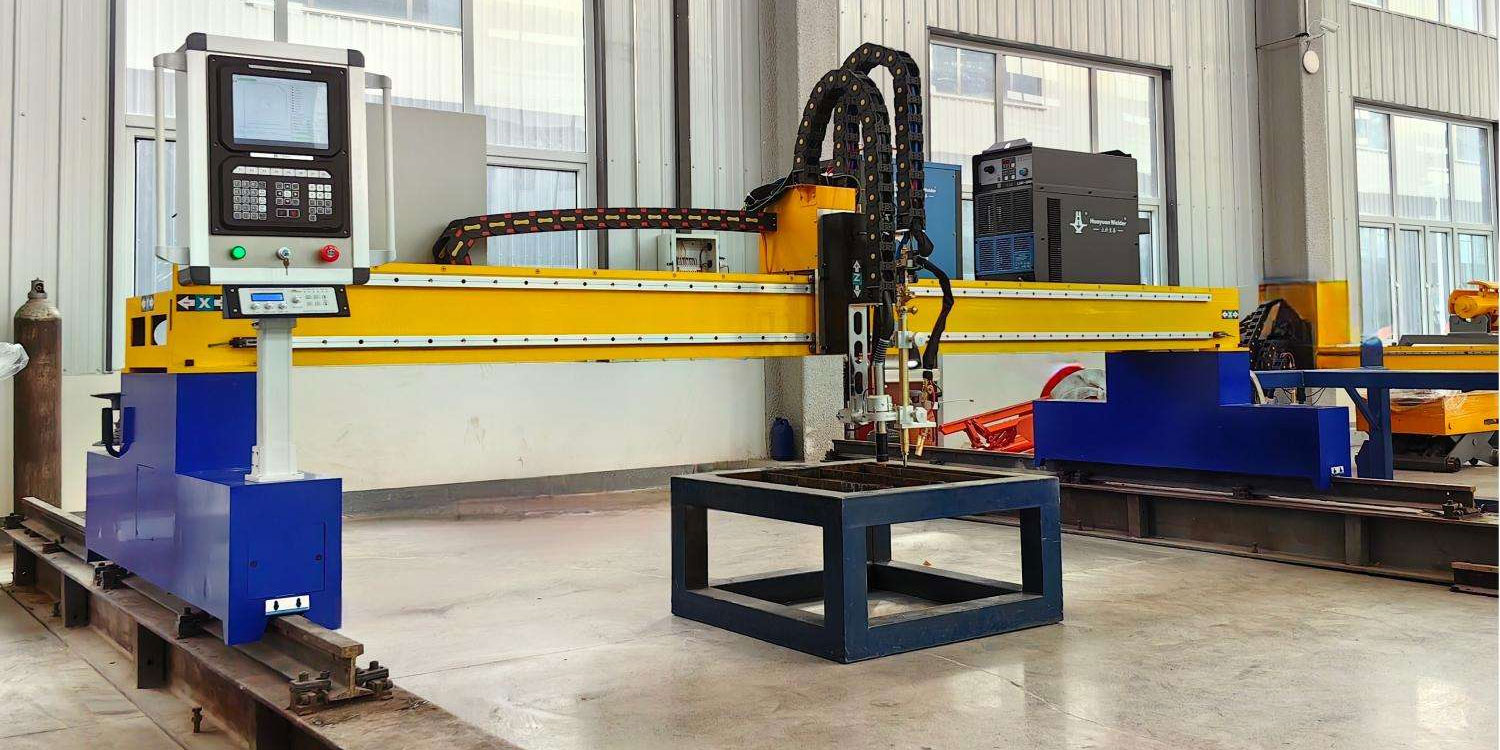

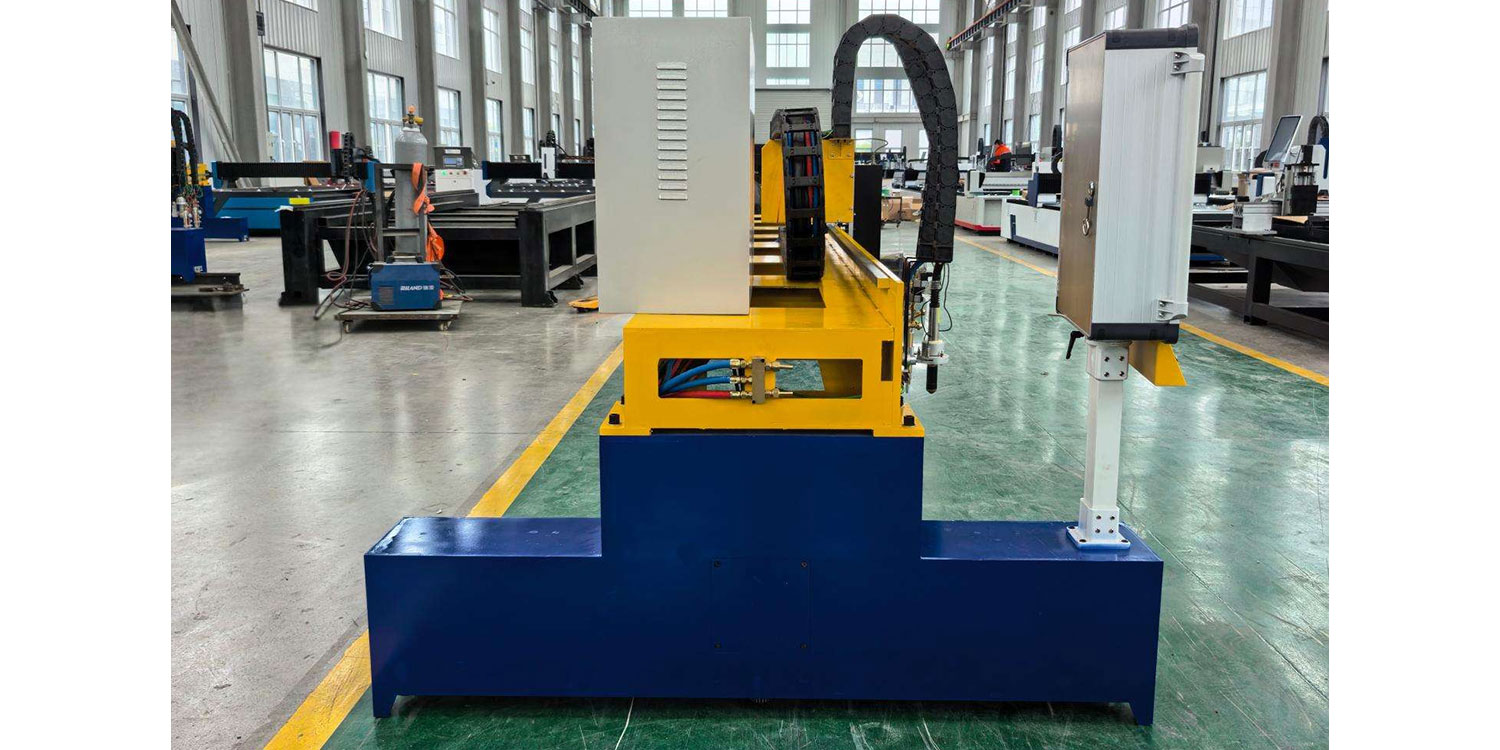

Gantry Type CNC Cutting Machine

A Gantry System is a high-performance mechanical structure used in industrial automation for precise linear motion and heavy-duty applications. It is widely used in CNC machines, plasma cutting systems, laser cutting, and material handling setups where accuracy, speed, and stability are critical.

Designed for rigidity and precision, gantry systems ensure smooth movement across large working areas. They enhance productivity, reduce operational errors, and provide consistent performance in demanding industrial environments.

Technical Specifications

Product Type	Gantry Motion System
Structure Type	Single Beam / Double Beam Gantry
Material	Steel / Aluminum Alloy
Drive System	Servo Motor / Stepper Motor
Transmission	Rack & Pinion / Ball Screw / Belt Drive
Motion Axis	X, Y, Z Axis (Multi-axis configuration)
Accuracy	High Precision Positioning
Speed	High-Speed Linear Motion
Mounting Type	Floor Mounted / Machine Integrated
Application	Material Handling, Cutting, Automation
Usage Industries	CNC Machinery, Automation, Automotive, Fabrication, Robotics

Available Types

• Single Axis Gantry System

• Dual Axis Gantry System

• Cartesian Gantry Robot

• Heavy Duty Gantry Structure

• Custom Built Gantry Systems

Key Features

• High precision and repeatability

• Strong and rigid structural design

• Suitable for large working areas

• Smooth and high-speed operation

• Low maintenance and long service life

• Customizable based on industrial requirements

Applications

• CNC plasma and laser cutting machines

• Industrial automation systems

• Robotic and pick-and-place applications

• Material handling and loading systems

• Automotive and fabrication industries
