The Standard P80 Plasma Torch Parts consist of a complete range of essential components required for the smooth and efficient operation of a P80 plasma cutting torch. These parts are designed to work together to generate, control, and direct the plasma arc, ensuring precise and high-quality cutting of conductive metals.

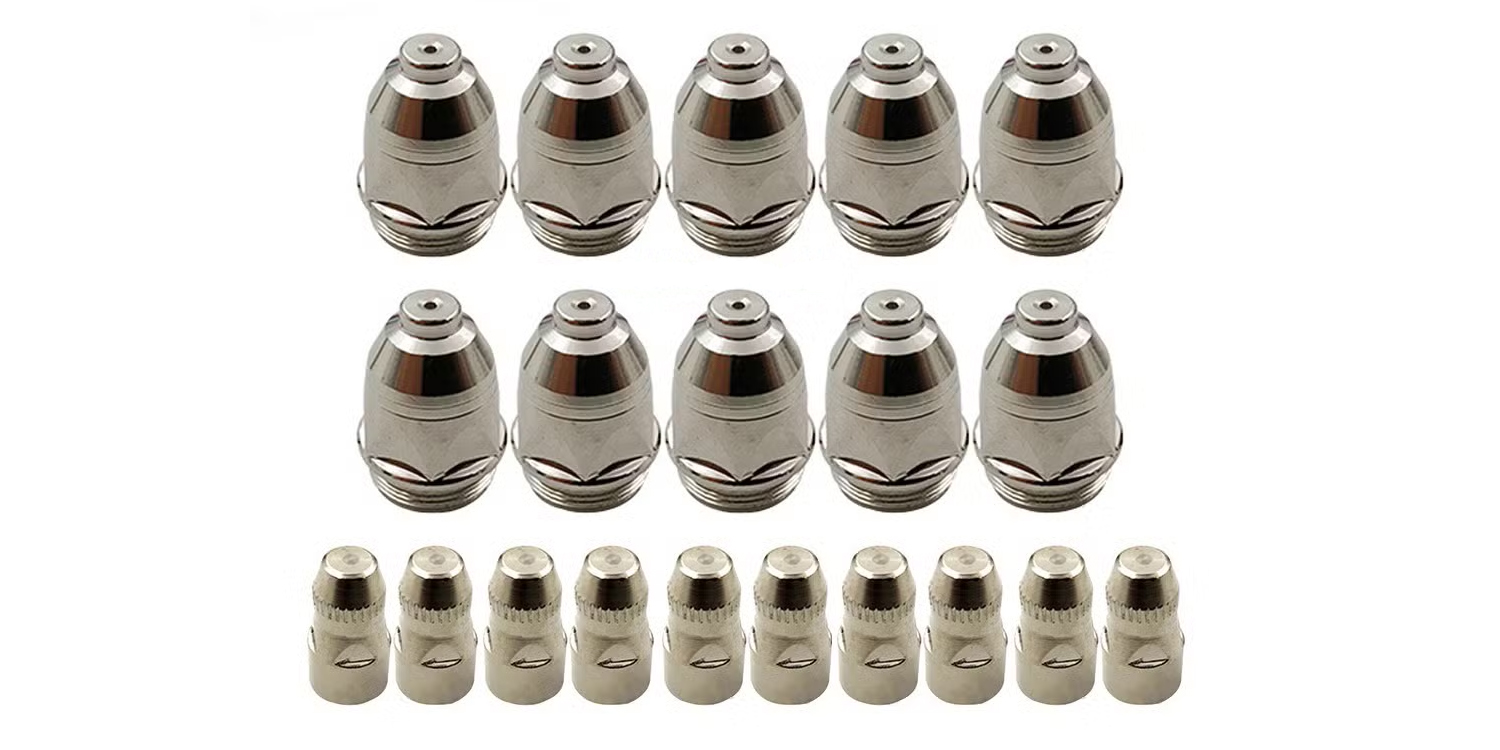

A typical P80 torch assembly includes electrode, nozzle (tip), ceramic shield cap, swirl ring, retaining cap, torch head, handle, and cable assembly. Each component plays a critical role in maintaining arc stability, controlling gas flow, and protecting the torch from extreme heat and molten metal exposure.
Technical Specifications
| Product Type | Plasma Torch Parts & Consumables |
|---|---|
| Model Compatibility | P80 Plasma Cutting Torch |
| Operating Current | 80 – 100 Amps |
| Main Components | Electrode, Nozzle, Ceramic Cap, Swirl Ring, Retaining Cap, Torch Head |
| Material (Electrode) | Copper with Hafnium Insert |
| Material (Nozzle) | High Conductivity Copper |
| Material (Ceramic Cap) | Heat-resistant Ceramic |
| Material (Swirl Ring) | High-temperature Resistant Polymer |
| Nozzle Orifice Size | 0.8 mm – 1.7 mm (based on cutting requirement) |
| Cooling Method | Air Cooled |
| Arc Type | Plasma Arc |
| Application | Manual & CNC Plasma Cutting |
| Cutting Materials | Mild Steel, Stainless Steel, Aluminum |
| Durability | High heat and wear resistance |
| Installation | Easy replacement, user-friendly assembly |
| Usage Industries | Fabrication, Automotive, Construction, Heavy Engineering |
| Packaging Options | Individual parts or complete kits |
Key Components & Functions
Electrode – Generates the plasma arc using conductive material with hafnium insert
Nozzle (Tip) – Focuses and directs the plasma arc for precise cutting
Ceramic Shield Cap – Protects internal parts from heat, sparks, and molten metal
Swirl Ring – Controls gas flow and stabilizes the arc for consistent cutting
Retaining Cap – Holds consumables securely in proper alignment
Torch Head & Body – Houses all internal components and ensures structural stability
Handle & Trigger – Provides user control in manual cutting applications
Cable Assembly – Supplies power and compressed air to the torch
Applications
Sheet metal cutting and fabrication
Heavy engineering and structural work
Automotive and repair industries
CNC plasma cutting machines
Industrial maintenance and workshops
