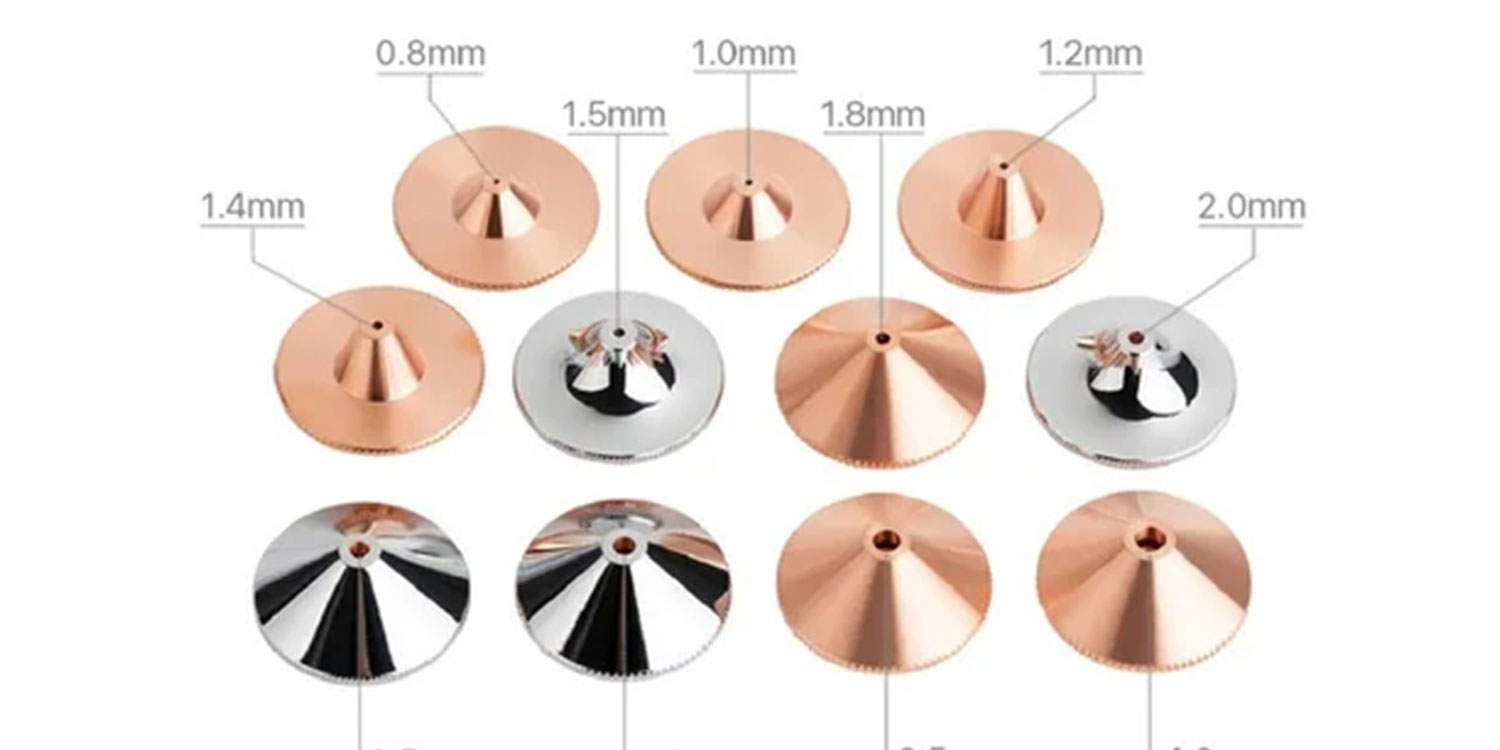

Laser Cutting Nozzle Single Layer
Laser Cutting Nozzle – Single Layer
Single Layer Laser Cutting Nozzles are precision consumables designed for fiber and CO₂ laser cutting systems. They play a critical role in directing assist gas flow to the cutting zone, ensuring clean cuts, stable operation, and improved edge quality during metal processing.
These nozzles are widely used in industrial laser cutting applications where consistent performance and cost efficiency are required. Manufactured from high-quality copper or brass materials, single layer nozzles provide reliable heat resistance, stable gas flow, and compatibility with a wide range of laser cutting heads used in fabrication and manufacturing industries.
Technical Specifications
| Product Type | Laser Cutting Consumable |
|---|---|
| Type | Single Layer Laser Cutting Nozzle |
| Material | High-Grade Copper / Brass |
| Compatible Machines | Fiber Laser Cutting Machine / CO₂ Laser Cutting Machine |
| Compatible Cutting Heads | Raytool, Precitec, WSX, and similar laser heads |
| Orifice Sizes | 0.8 mm – 5.0 mm |
| Gas Type | Oxygen / Nitrogen / Compressed Air |
| Cooling Method | Assisted Gas Cooling |
| Cutting Thickness Range | 0.5 mm – 20 mm (depending on laser power) |
| Mounting Type | Threaded / Precision Fit (machine dependent) |
| Usage Industries | Metal Fabrication, Automotive, Construction, Aerospace, Manufacturing |
Available Variants
-
Single Layer Standard Nozzle
-
Fine Cutting Nozzle
-
High Power Cutting Nozzle
-
Extended Life Single Layer Nozzle
-
Custom Orifice Size Nozzles
Key Features
-
Precision gas flow control for stable laser cutting performance
-
Cost-effective consumable for industrial cutting applications
-
High-quality copper/brass construction for durability
-
Compatible with most fiber and CO₂ laser cutting heads
-
Stable performance with reduced dross formation
-
Easy replacement and low maintenance requirement
Applications
-
Industrial laser metal cutting operations
-
Sheet metal fabrication and processing
-
Automotive manufacturing and component production
-
Aerospace and precision engineering industries
-
General CNC laser cutting and fabrication workshops
