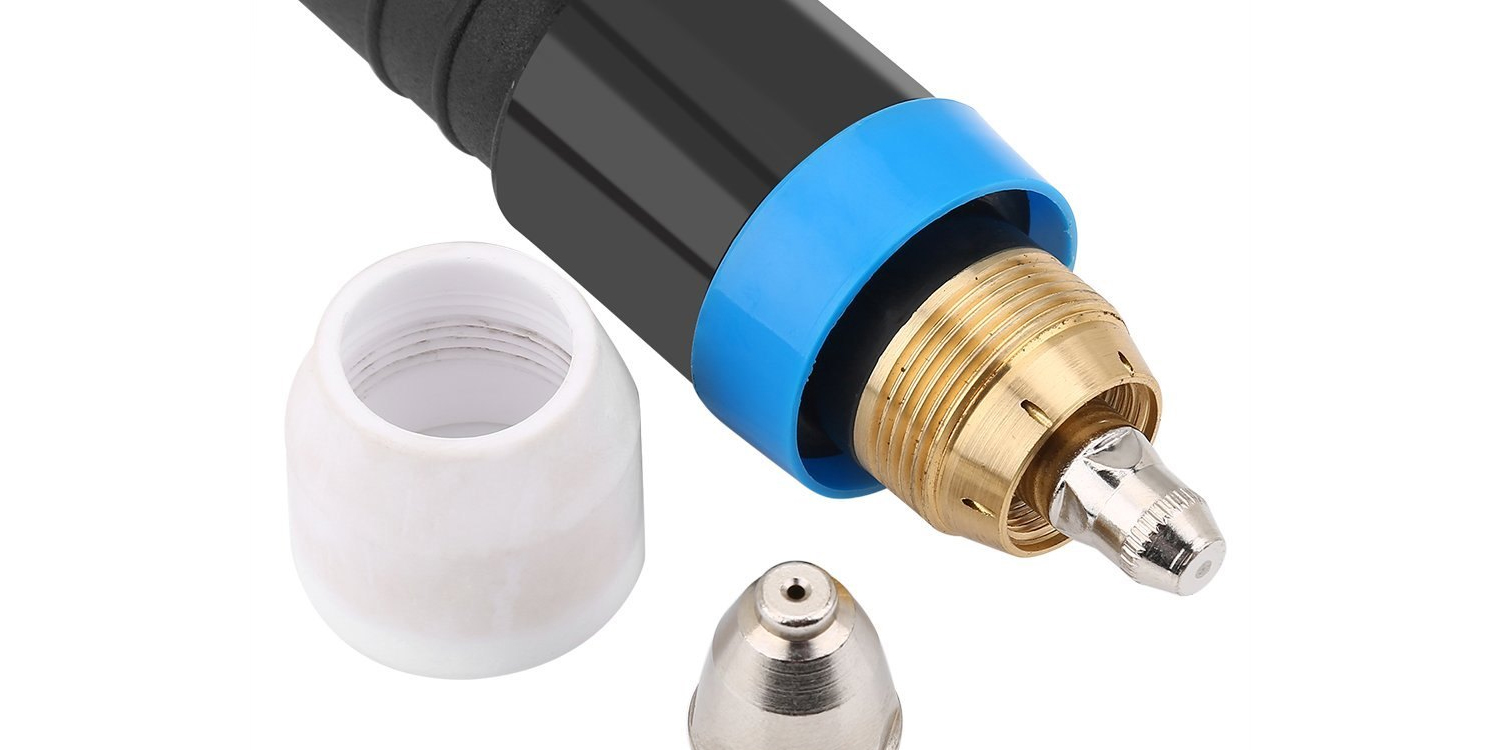

Cut 100 P80 Plasma Torch Head

The CUT 100 P80 Plasma Torch Head is a heavy-duty, high-performance cutting torch designed for precision plasma cutting applications at higher current capacities. Engineered to operate efficiently with CUT-100 plasma cutting machines, this torch head delivers powerful arc stability, faster cutting speeds, and superior edge quality across a wide range of conductive metals.

Built with robust materials and advanced design, the CUT 100 P80 torch head ensures long service life, consistent performance, and reduced downtime—making it ideal for industrial fabrication and CNC plasma cutting operations.

Technical Specifications

Parameter	Specification
Model	CUT 100 P80 Plasma Torch Head
Rated Current	100 Amps
Duty Cycle	60% – 100%
Arc Starting	High Frequency (HF) / Pilot Arc
Cooling Method	Air Cooled
Torch Type	Handheld / CNC Machine Compatible
Cable Length	5m / 6m / 8m (Optional)
Operating Voltage	220V / 380V / 415V (Machine Dependent)
Gas Type	Compressed Air
Air Pressure Requirement	5.0 – 6.5 Bar
Air Flow Rate	150 – 220 L/min
Cutting Thickness	Up to 25 mm (Depending on material)
Maximum Severance	Up to 35 mm
Cutting Speed	High Speed (Material & Thickness Dependent)
Electrode & Nozzle Type	P80 Standard Consumables
Insulation Class	F
Protection Class	IP21
Weight	Approx. 3 – 4 kg
Application	Industrial / CNC Plasma Cutting

Key Features

• Designed for CUT-100 plasma cutting machines

• High current capacity up to 100 Amps

• Stable pilot arc for smooth and continuous cutting

• Heavy-duty, heat-resistant construction

• Clean cuts with minimal slag formation

• Compatible with standard P80 consumables

• Suitable for both manual and CNC applications

• Easy maintenance and quick consumable replacement

Applications

• Industrial fabrication

• Structural steel cutting

• Shipbuilding and heavy engineering

• Automotive and repair workshops

• CNC plasma cutting systems

Compatible Materials

• Mild Steel

• Stainless Steel

• Aluminum

• Copper and other conductive metals
